Ballistic station «Speed»
in-house ballistic station
Short description
A compact, portable ballistic station for precise measurement of projectile muzzle speed in the range of 60 to 2,000 m/s. Ready for operation in 5 minutes, operated by a single user, runs for up to 12 hours without recharging.

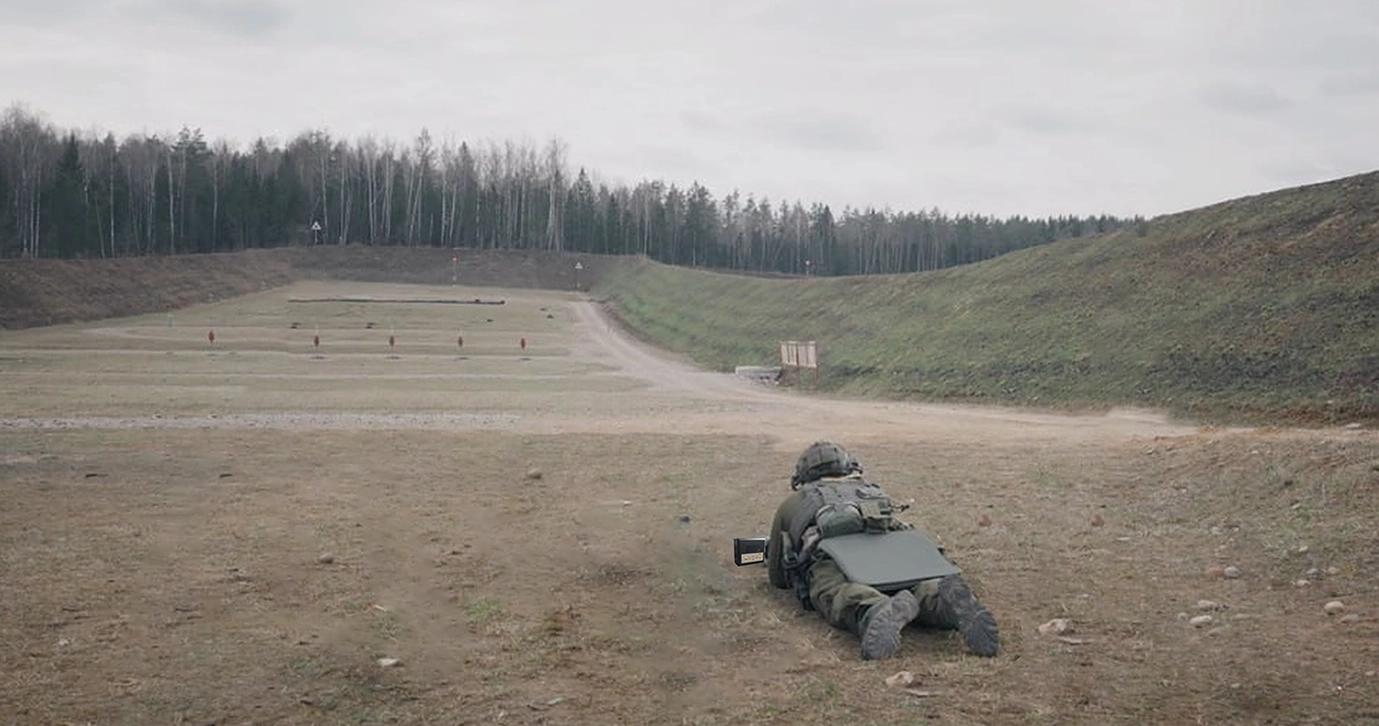

System Operation Diagram
- Projectile speed monitoring
- Universal measurement range up to 2,000 m/s
You can get all the information by phone

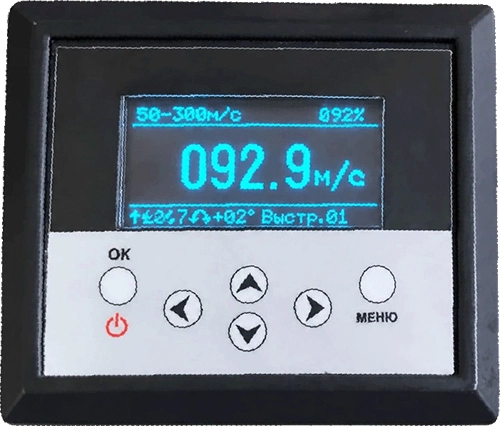

The Ballistic station «Speed» is a specialized measurement system designed for speed determination. It operates on a radar sensor that captures the object's speed and displays the result on the built-in LCD screen within 500 ms. The device requires no additional accessories. IP 65-rated enclosure protection ensures reliable operation in various weather conditions — in dust, rain, and at extreme temperatures. Power is supplied by a built-in 6,000 mAh lithium-ion battery. Data transmission is available both via the remote control unit and to a mobile device running the Android operating system. Session results are stored in device memory with the ability to view the shot list.
Ballistic station «Speed»
- Measuring muzzle speed of projectiles in various ballistic systems.
- Monitoring projectile consistency: comparing speed data within a single shot string.
- Documenting measurement results on-site with the ability to export data to an external device.
Ballistic station «Speed»
- Rapid deployment and ease of operation: the system is ready for use in 5 minutes and requires no special site preparation.
- High reliability in field conditions: IP 65 protection and an operating temperature range of −40 to +60 °C ensure stable performance in any weather.
- Up to 12 hours of continuous autonomous operation from the built-in battery without the need for connection to an external power source.
- Measurement range: 60 – 2,000 m/s
- Measurement accuracy: 0.05%
- Radar operating frequency: 24 GHz
- Battery life: 12 hours
- Enclosure protection rating: IP 65
- Operating temperature: −40 to +60 °C
- Deployment time: up to 5 minutes
- Kit weight: no more than 10 kg
- Data display: LCD display
- Data transmission: radio signal / Bluetooth
- Mounting: 1/4-inch tripod thread
- Warranty period: 12 months
