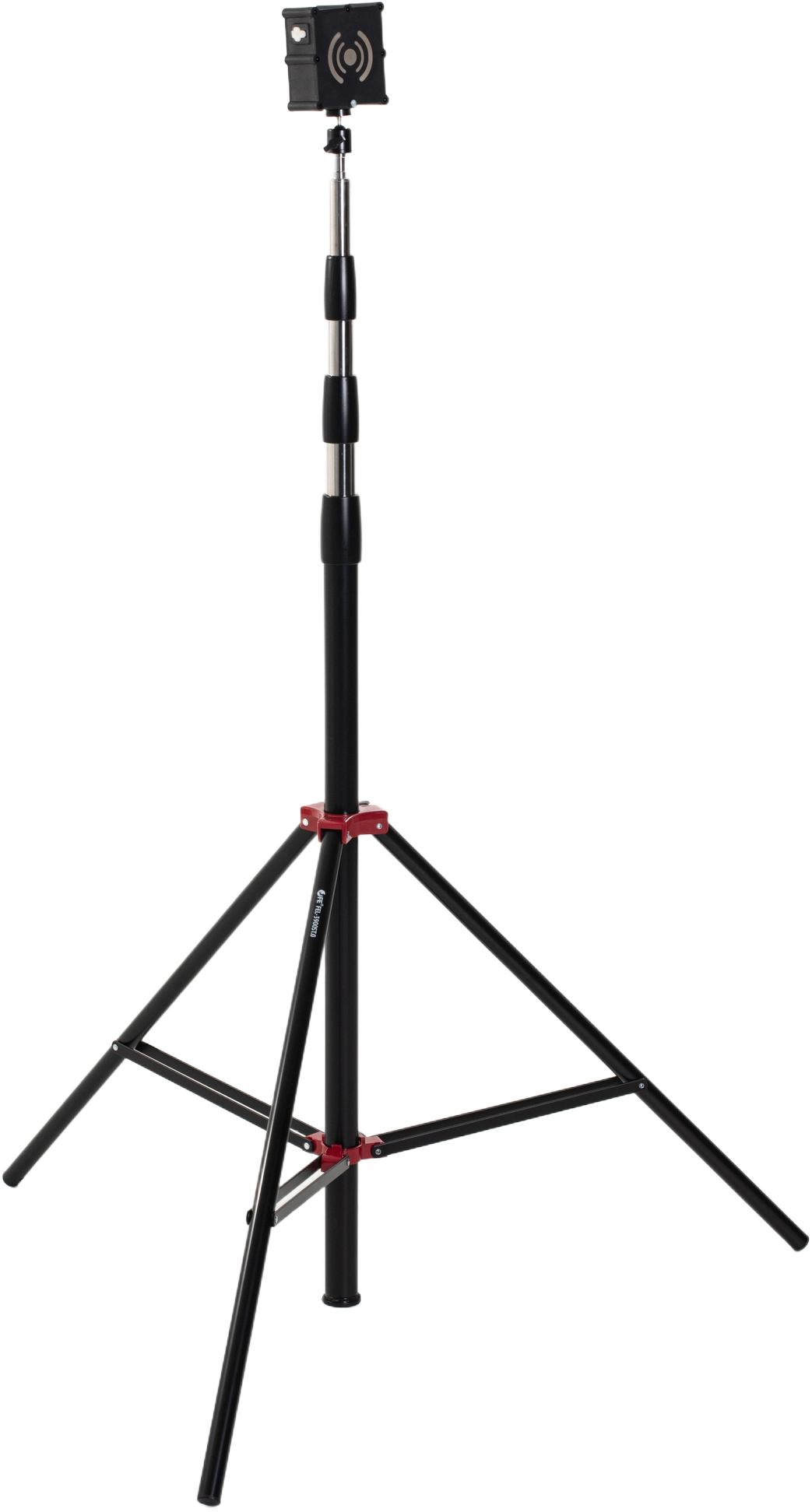

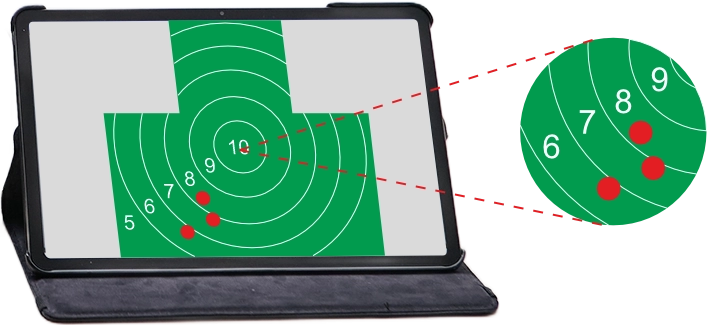

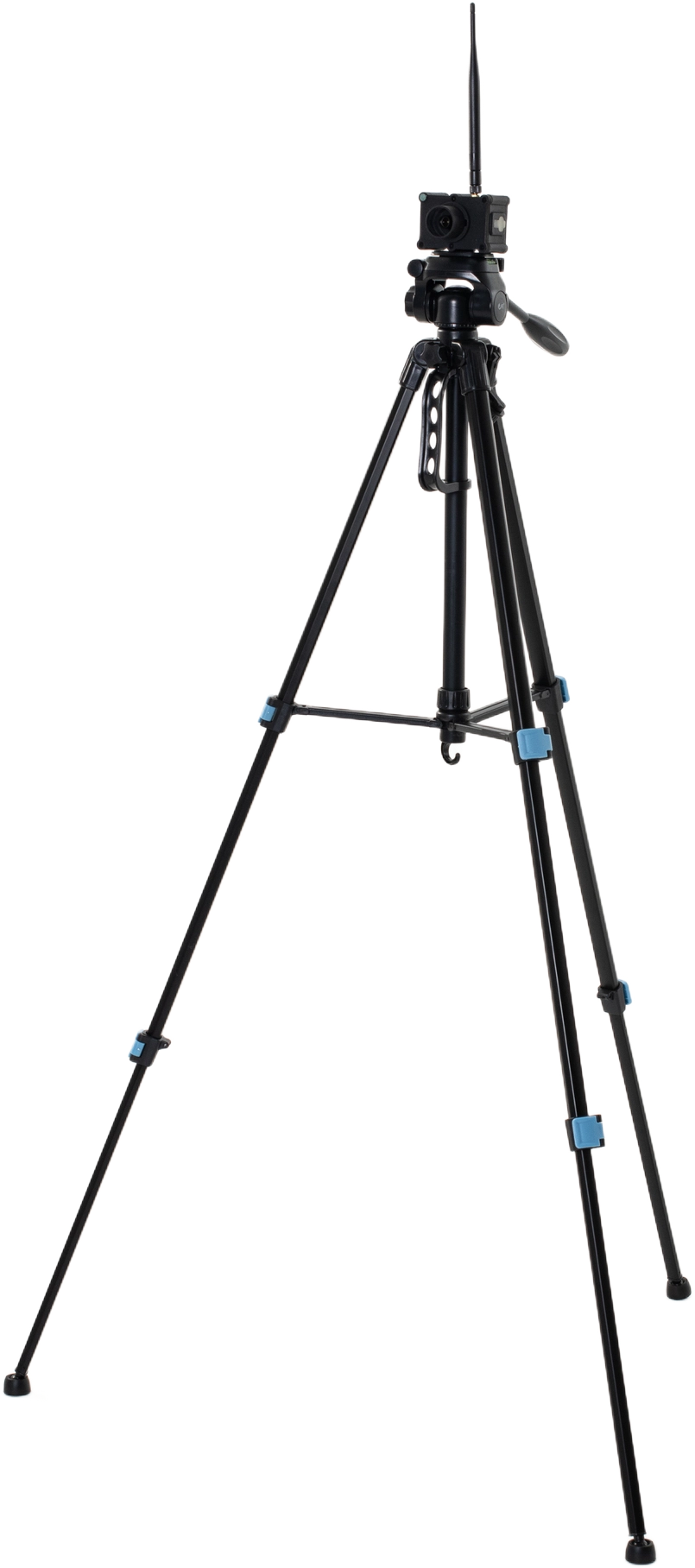

Complex «Observer» consists of surveillance modules installed up to 7 meters from the targets; a base module positioned at the firing line; and an external device for monitoring target engagement results. The video signal is transmitted over a wireless network to the external device, where it is displayed in real time via the dedicated «Watcher» application, available in the applications section of our website. The shooter observes hits directly on the device screen. This enables logging results for each shot, saving data for subsequent analysis. The system can include up to 7 surveillance modules, allowing simultaneous monitoring of multiple firing lines. The system is supplied in a protective case and is ready for operation within one minute of deployment. Module housings are protected against dust and moisture (IP65 protection rating), ensuring reliable operation in any weather conditions.

Complex «Observer» applications

• Remote monitoring of shooting results. The system provides continuous live video feed of the target to the user's device, eliminating the need to advance to the targets to retrieve results.
• Conducting group sessions and competitions. The system enables simultaneous observation of multiple targets and recording of results for several shooters on a single target.
• Analysis and correction of shooting. Hit results are displayed on the external control device, allowing errors to be reviewed, corrections to be made, and training dynamics to be tracked.

Complex «Observer» advantages

• Time savings during sessions. There is no need to interrupt shooting and walk downrange to the targets — results are visible immediately on screen. This significantly reduces time spent on range organization and instruction, increasing productive training time.
• Operation in any conditions. Modules are protected against dust and moisture (IP65) and rated for operation at temperatures from −20 to +45 °C.
• Remote wireless operation. System deployment requires no wired connection. Autonomous operation without recharging — at least 12 hours.
• Compactness and ease of deployment. The entire kit weighs no more than 4 kg and fits in a single case. The system is ready for use in under one minute, requiring no special knowledge for installation and connection.

• Operating range: up to 2,000 m
• Autonomous operation time (at 0 °C): at least 12 h
• Enclosure protection rating: IP65
• Operating temperature range: −20 to +45 °C
• Single surveillance module weight: no more than 0.3 kg
• Base module weight: no more than 0.45 kg
• System weight in case: no more than 4 kg
• Data transmission: Wi-Fi
• Control device: tablet / smartphone running Android 10.0 or higher
• Deployment time: no more than 1 min

1. Base Module — 1 pc
2. Surveillance Module — up to 7 pcs
3. External Device — 1 pc
4. Tripod — up to 8 pcs
5. Charger — 1 set
6. Storage and Transport Case — 2 pcs
7. Certificate and User Manual — 1 pc
