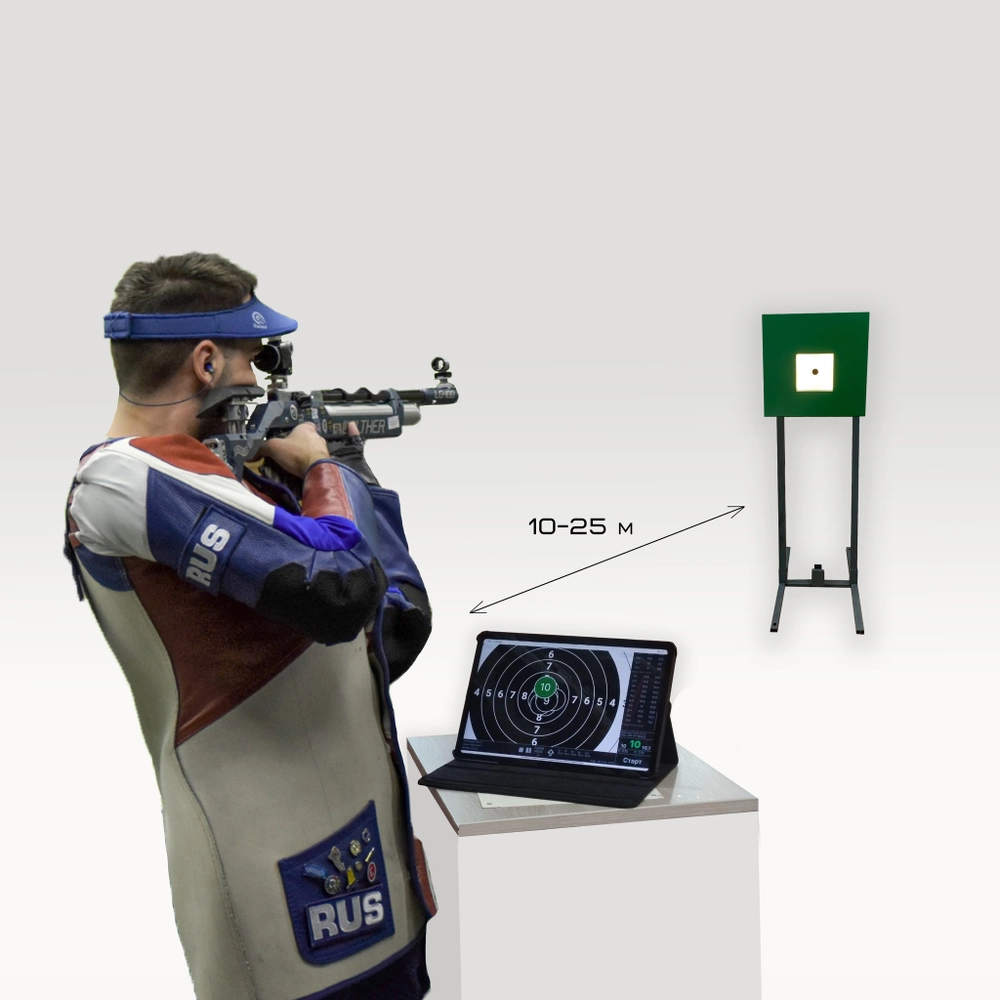

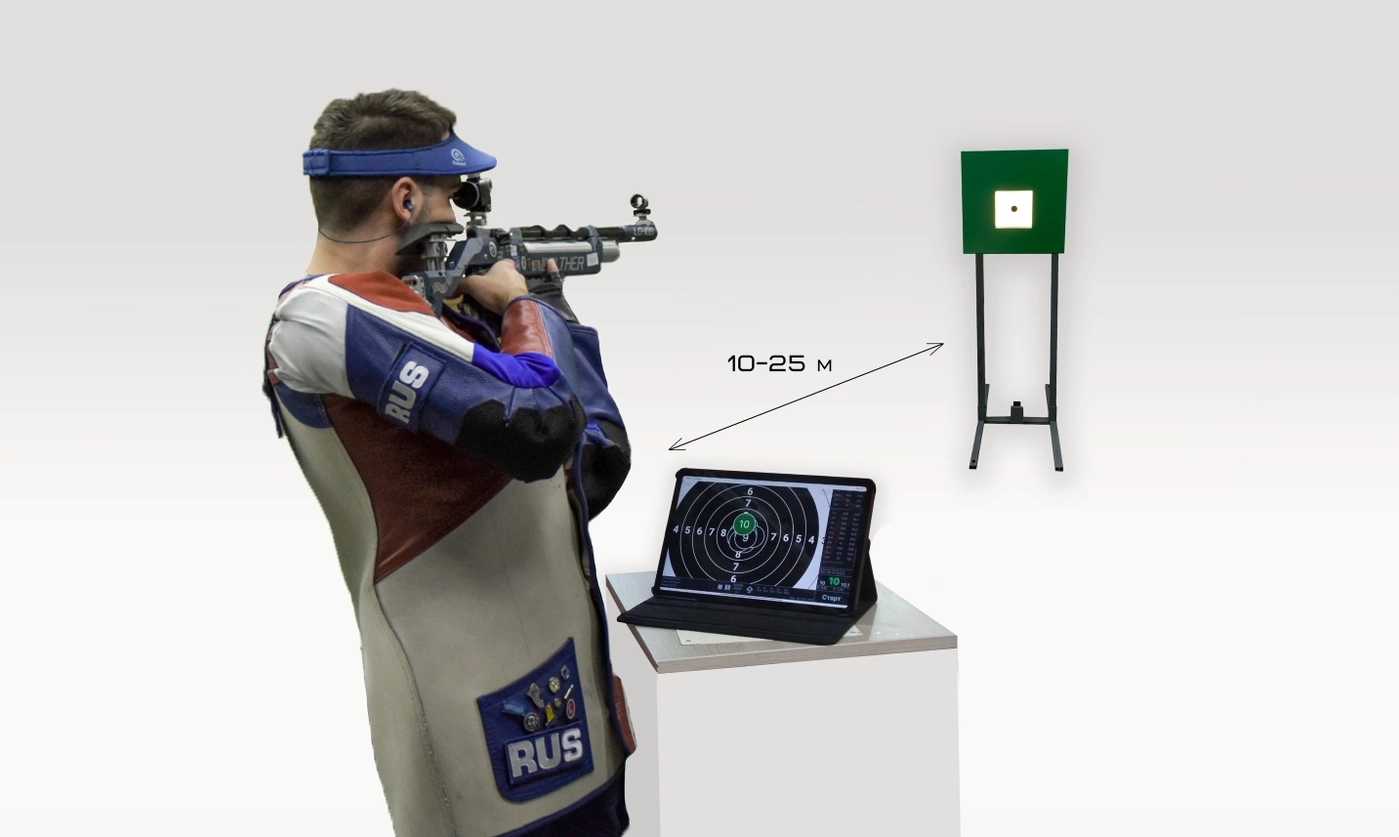

Complex «Iris–1» is an electronic target system for conducting training sessions and competitions in rifle shooting at distances up to 10 meters. It supports all exercise types and targets in accordance with shooting sport rules. Each hit is registered automatically: the result is instantly displayed on the tablet screen in numerical and graphical format. The shooter and coach see the point of impact, shot value, and series total in real time — without the need to approach the target. Communication between the target and tablet is wireless. The system is equally effective in indoor ranges and outdoor shooting facilities. Deployment and ready time — no more than one minute. Compact dimensions and a universal mounting system ensure simple installation on standard target holders without additional site preparation.

Complex «Iris–1» applications

• Training and competition conduct. The system is designed for training and official competition shooting with small-bore firearms at distances up to 10 m. It supports exercises and target types in accordance with the rules of the Belarusian Shooting Sport Federation, including targets for rifle, air, and rapid-fire pistol.
• Remote monitoring and result logging. Provides automatic calculation of hit values, series totals, and overall scores with display in numerical and graphical format on the tablet screen. Results are saved and available for viewing at any time.
• Flexible configuration for user requirements. The software allows selecting target type and exercises, setting series parameters, and running tournament mode. External software can be developed and adapted to specific customer requirements.

Complex «Iris–1» advantages

• Accuracy confirmed by standard. Hole detection accuracy is one-half of one-tenth of the target diameter. The system's working field corresponds to standard dimensions of the largest small-bore target according to rifle shooting technical rules.
• Wireless data transmission without delay. Results for each shot are instantly transmitted to the tablet via a wireless channel in the 2,430–2,480 MHz range with transmitter power up to 100 mW and operating range up to 10 m — without the need for cable infrastructure.
• Reduced operational costs. Automatic result capture eliminates the need for regular replacement of paper targets, significantly reducing shooting lane maintenance time and consumable expenditures.

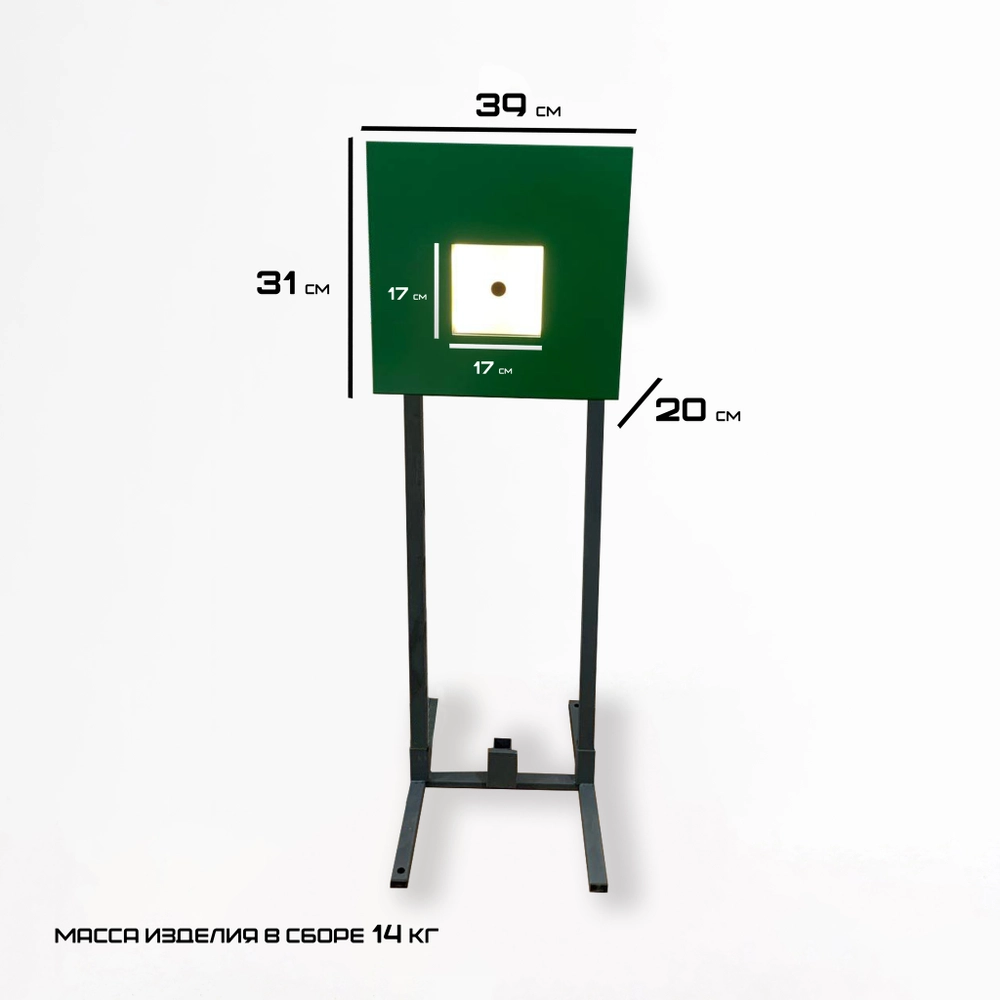

• ETU dimensions: 310 × 390 × 200 mm

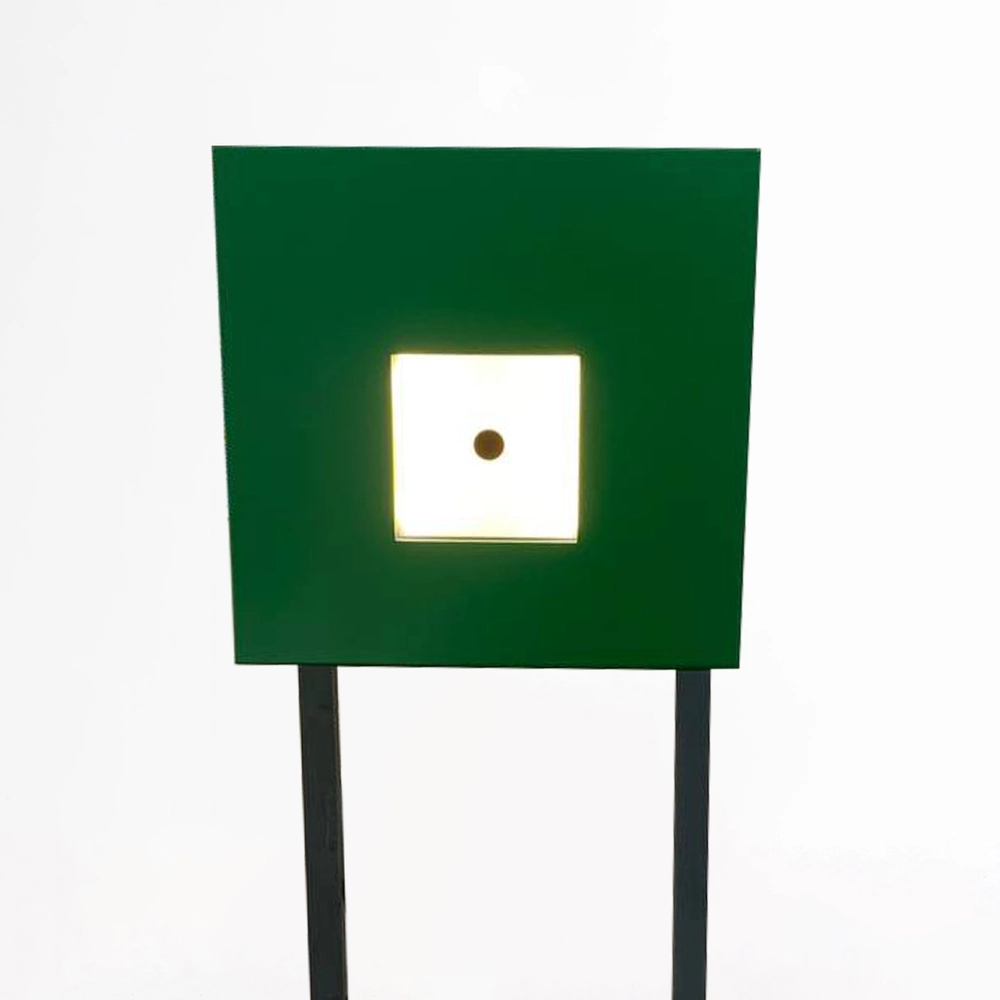

• Visible area: 170 × 170 mm
• ETU weight: no more than 14 kg
• ETU operating voltage: 24 V
• Operating frequency: 2,430–2,480 MHz
• Transmitter power: up to 100 mW
• Operating range: up to 10 m
• Protection rating: IP64
• Operating temperature: 0 °C to +45 °C

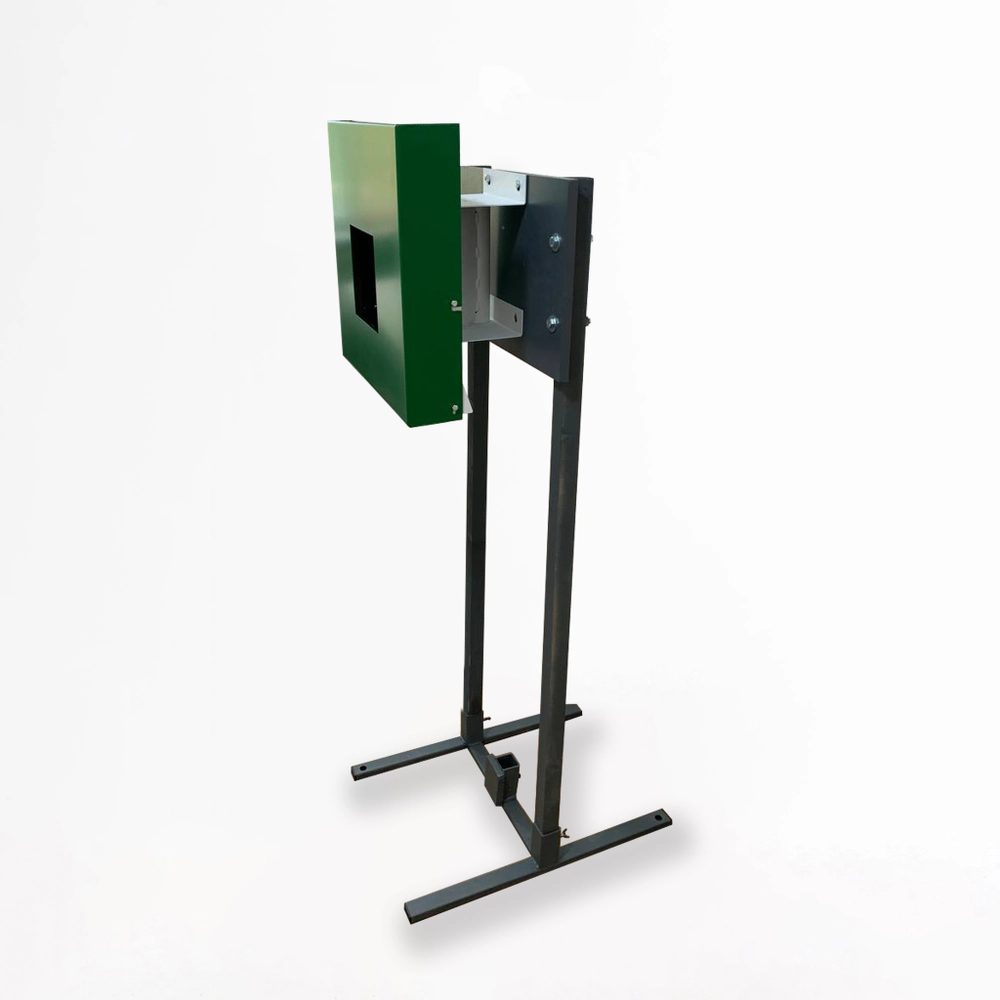

• ETU mounting: universal
• Deployment time: no more than 1 min

• Complex «Iris–1» — 1 pc
• External Device — 1 pc
• External Power Supply — 1 pc
• Air Rifle Shooting Mask — 2 pcs
• Air Pistol Shooting Mask — 2 pcs
• Charger — 1 set
